NET ZERO BUILDING CODE

Net-Zero Building Code

Click on each step to learn more about them

Canada’s building code is paving the way to all buildings being net-zero. Building codes are simply a regulatory instruments that set out the requirements for the design and construction of residential or commercial buildings. Building codes ensure new construction meets minimum health, safety, and performance standards. The end goal of Canada’s proposed 2020 national model code is that all new buildings will be built to net-zero energy-ready standards by 2030.

STEP 5

Step 5 – BC Building Code

The BC Step Code 5 indicates the final code that must be achieved in all new buildings by the year 2032.  Over time, building codes will be moving to achieve a net-zero energy-ready building that will produce as much energy as it consumes. The biggest benefit for SIPs is that they already adhere to the BC Step Code 5 building code.

Requirements

  • This step must have ≤ 1.0 airtightness to ensure that less energy is being emitted
  • The building envelope requires thermal energy demand intensity of ≤ 15kWh
  • The home must be net-zero energy-ready which means that these buildings must produce as much clean energy as they consume. They are up to 80% more energy efficient than other new buildings and require on-site renewable energy systems to produce the energy that they need. A net-zero energy-ready building is built to a level of performance that it could, with the addition of other renewable energy sources such as solar panels, achieve net-zero energy performance.

NET-ZERO
READY

net zero building code

STEP 4

Step 4 – BC Building Code

To comply with BC Step Code 4, builders and designers must achieve more rigorous energy efficiency and airtightness requirements. This step requires that the building envelope is the first priority when achieving this building code.

Requirements

  • All previous BC Step Codes must be met
  • There must be an elimination of all significant thermal bridges
  • All windows must be high-performance, triple-glazed windows and frames that reduce frame elements
  • This step must have ≤ 1.5 airtightness to ensure that less energy is being emitted
  • The building envelope requires thermal energy demand intensity of ≤ 25kWh
  • The home must have no less than 40% lower energy consumption and have at least 8-% heat recovery efficiency

40%
More Efficient

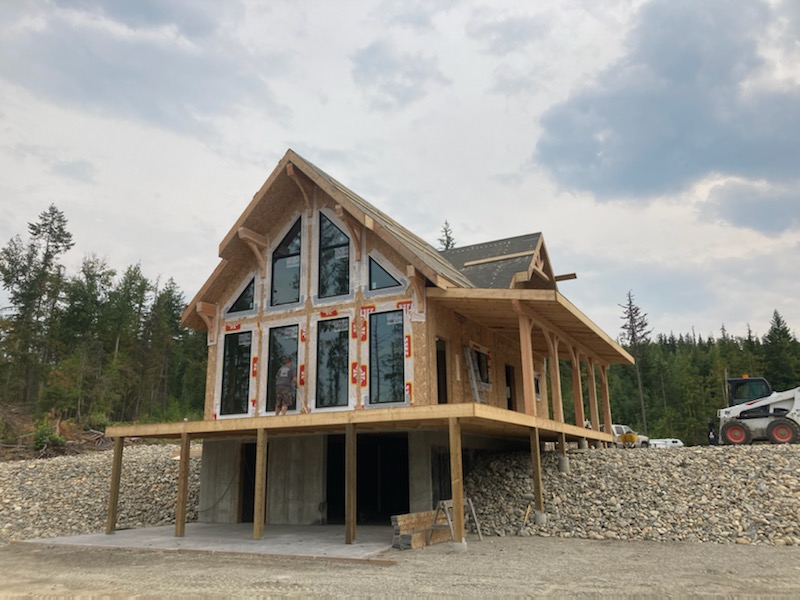

In-progress BC Building code home

STEP 3

Step 3 – BC Building Code

In order to comply with BC Step Code 3, builders and designers must take a step further to begin taking a more integrated approach. By the beginning of 2023, all builds will be required to be a BC Step Code 3.

Requirements

  • All requirements from BC Step Codes 1 and 2 must be met
  • Must reduce thermal bridging
  • Implementation of compartmentalization to improve airtightness for building units
  • This step must have ≤ 2.5 airtightness to ensure that less energy is being emitted
  • The building envelope requires thermal energy demand intensity of ≤ 40kWh
  • The building must consume 20% less energy than it produces

20%
More Efficient

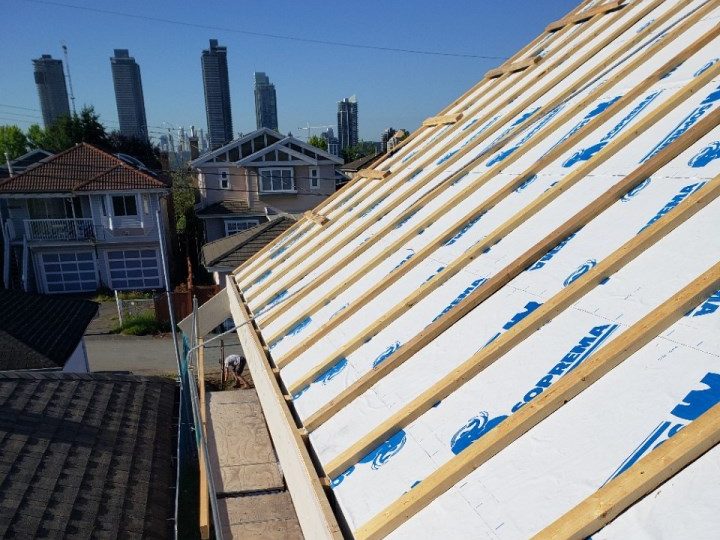

Roof SIPs being used to build a net-zero ready home

STEP 2

Step 2 – BC Building Code

Builders can achieve BC Step Code 2 by implementing conventional practices and with widely available materials. These practices and materials must result in an improved airtightness of the building to prevent the release of excessive emissions.

Requirements

  • All requirements from BC Step Code 1 must be met
  • The building design must have an overall lower window-to-wall ratio and requires a higher building R-Values. The minimum R-Value for the walls must be an R-10 and the roof must be an R-20
  • There must be an average of 60% improvement in heat-recovery efficiency
  • All windows must be double to triple glazed with higher U-values to improve overall performance
  • This step must have ≤ 3.0 airtightness to ensure that less energy is being emitted
  • The building envelope requires thermal energy demand intensity of ≤ 45kWh
  • The home must have no less than 10% lower energy consumption

10%
More Efficient

Structurally insulated panels being taken off a semi truck

STEP 1

Step 1 – BC Building Code – Enhanced Compliance

Step Code 1 indicates that a building must perform as well as, or better than a building constructed to meet minimum prescriptive energy efficiency requirements of the BC Building Code. Step Code 1 is intended to help builders familiarize themselves and create a smooth transition into high-performance building solutions.

Requirements

  • Submit an energy model of the building created in accordance with the Natural Resources Canada EnerGuide Rating System
    • This model is required to represent that the building’s energy performance will be no worse than a reference building
  • Step 1 entails modelling energy performance and measuring airtightness to ensure that a building will meet or exceed the minimum energy-efficiency requirements in the base BC Building Code. Meanwhile, at the opposite end of the scale, the highest step represents a “net-zero energy-ready” standard – a standard that is being met by the most energy-efficient projects being developed today.

Improved

Energy Efficiency

SIPs in a warehouse
